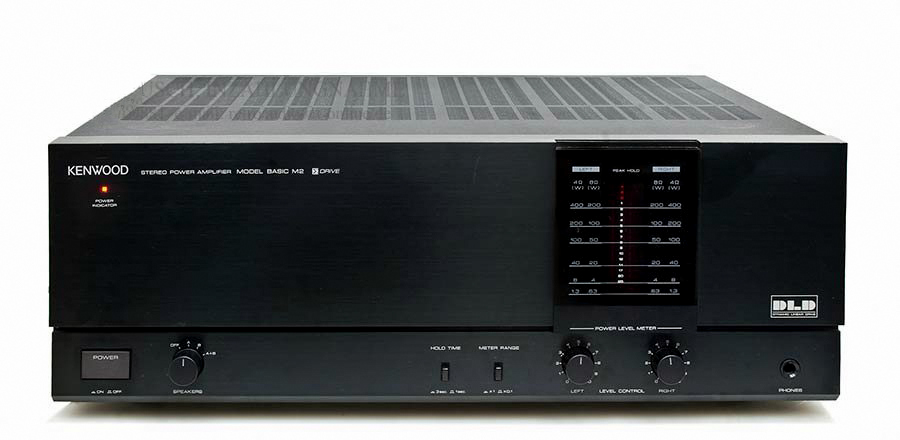

Still available here: Kenwood Basic M2 Power Amplifier
The legendary audio power amplifier of the 80s!
One of the best power amplifiers ever built, with absolutely superior and unsurpassed specifications.
Featuring the patented Kenwood Α-Drive to compensate for any line losses and interference on the way to the speaker.
Featuring the patented Kenwood DLD (Dynamic Linear Drive), which provides two separate amplifier circuits:
- One low-power amplifier circuit per channel with the best possible sound and distortion parameters.
- One high-power amplifier circuit per channel with the greatest possible performance.

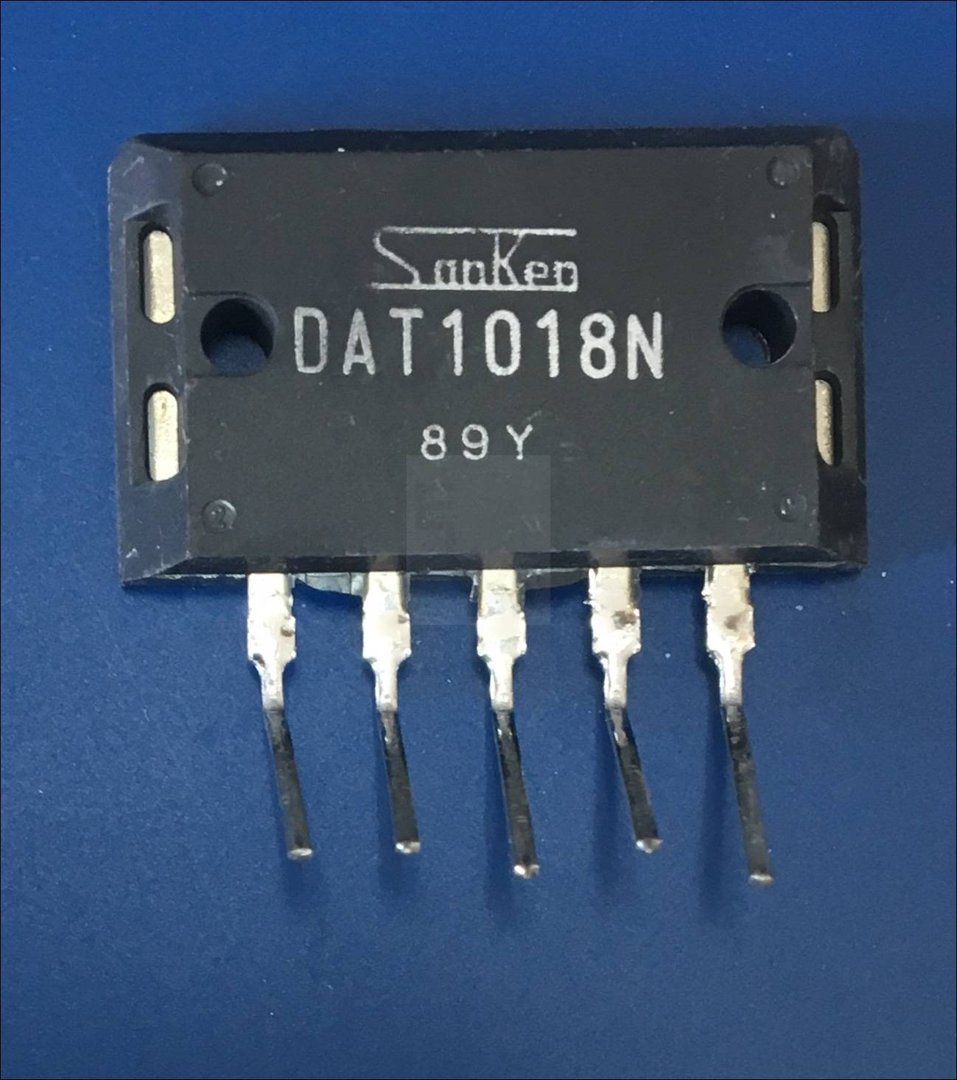

Featuring original, legendary, and virtually indestructible SanKen transistors. The pinnacle of Kenwood's unsurpassed development work and Japanese manufacturing expertise.

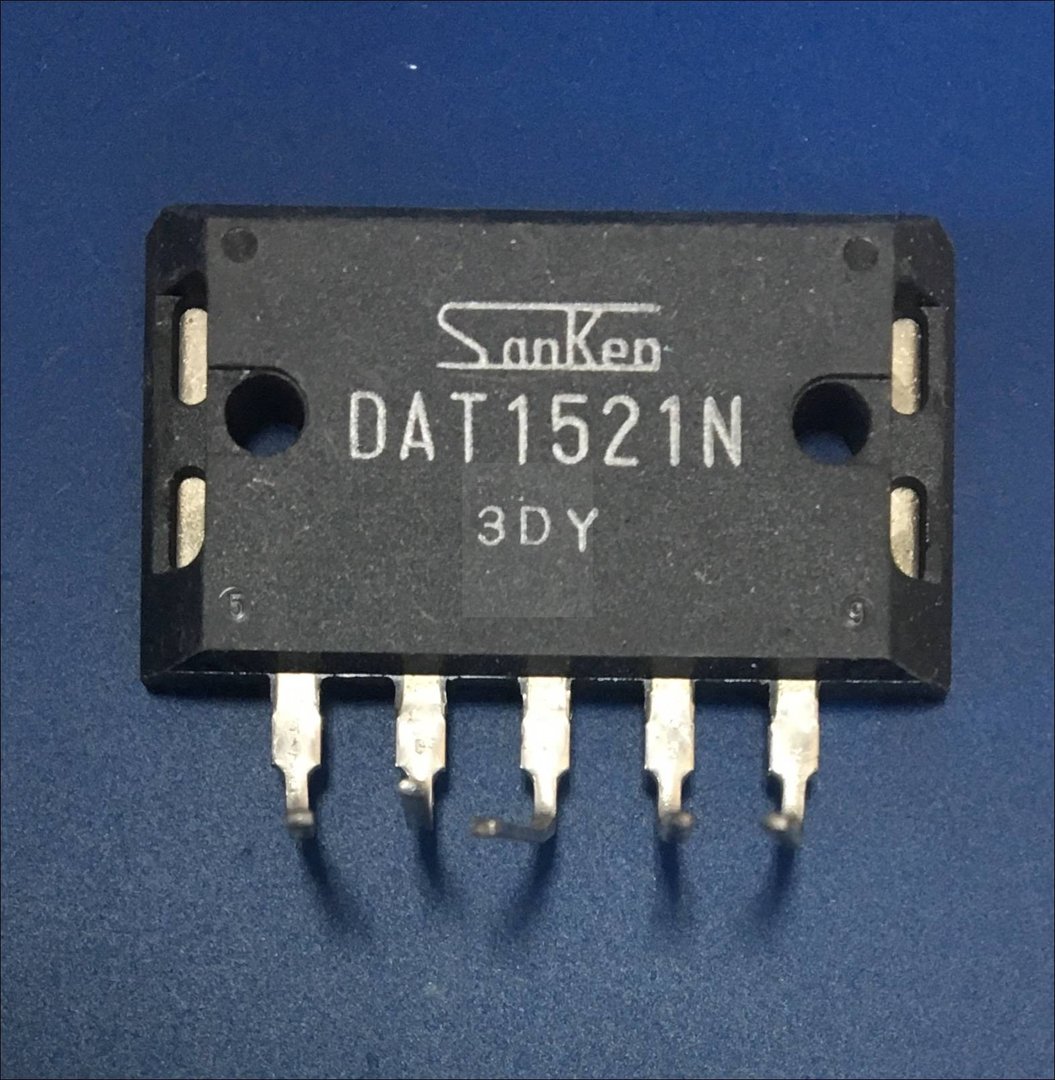

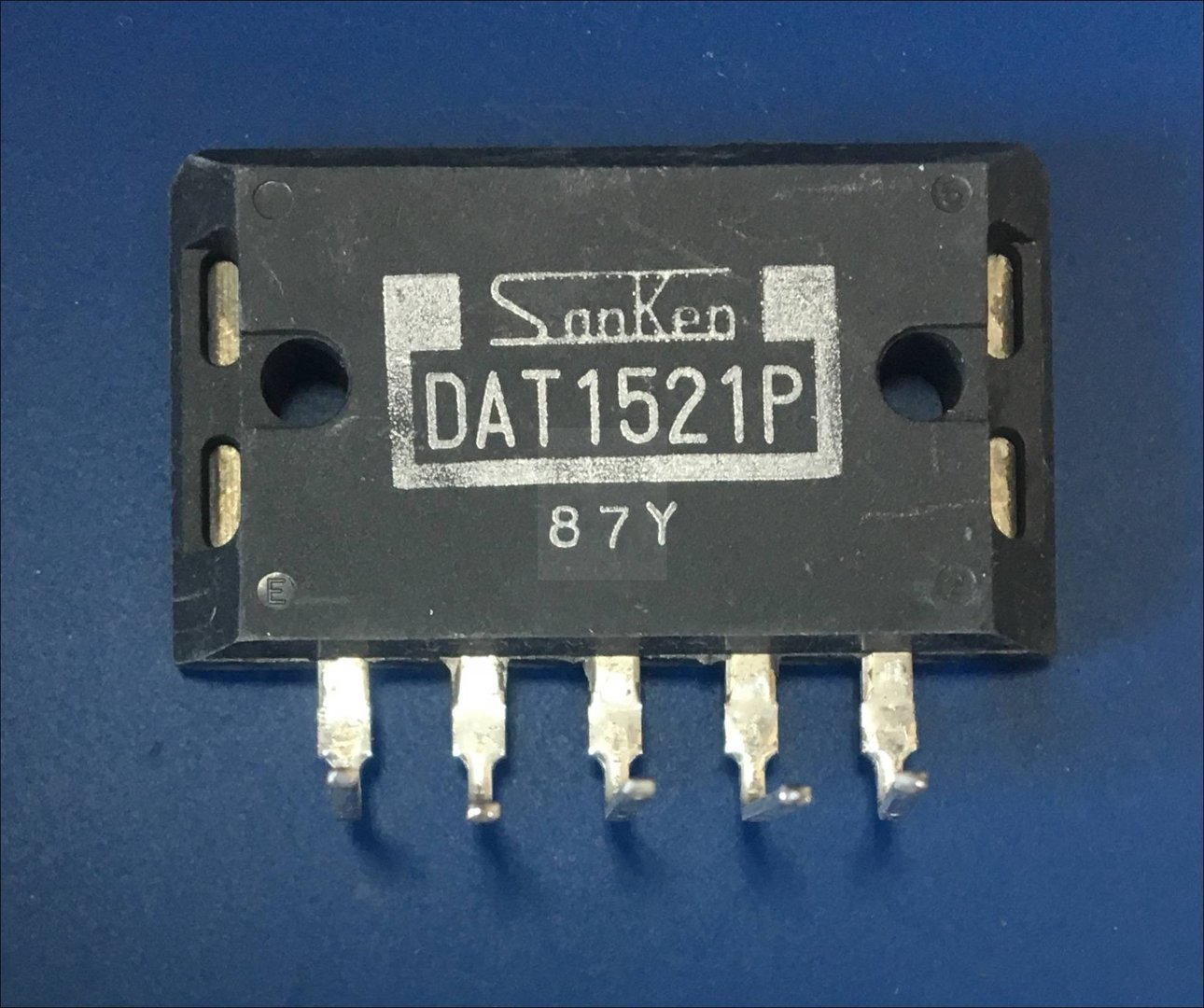

DAT1521 (Dual Audio Transistor) transistors are used, with paired and calibrated transistor pairs mounted on a single die. Accuphase, Luxman, Yamaha, and Sansui have also used SanKen. There's nothing better!
Extremely rare to find these days, as mostly only counterfeits remain on the market.
With speaker protection circuitry and gentle power-on delay.
Years of manufacture: 1983 - 1987
Made in: Japan
Color: Black
Remote control: No
Power consumption: 500 W
Dimensions: 440 x 158 x 373 mm
Weight: 15.5 kg
Retail price approx.: 1,500 DM
Two separate power transformers for generous power reserves
Active cooling, temperature-controlled
Operating voltage: 120 V / 240 V / 220 V (switchable)
Comes with an EU plug / connection cable and preset to 240 V
Connections:
Number of inputs:
1 x Line In: 1 V / 47 kOhm
Number of outputs:
2 x speakers (speaker A / B)
Technical specifications
Rated power
8 Ohm: 2 x 220 W RMS (20 Hz - 20 kHz, at 0.004% THD)
Continuous Power (at THD)
8 ohms: 2 x 230 W (at 0.7% THD, 63 Hz - 12.5 kHz, according to IEC/LF standard; at 1% THD, 1 kHz, according to DIN standard)
4 ohms: 2 x 250 W (at 1% THD, 1 kHz, according to DIN standard)
Clipping Power
8 ohms: 242 W
4 ohms: 324 W
Dynamic Power
8 ohms: 2 x 346 W
4 ohms: 2 x 526 W
Total Harmonic Distortion:
0.004% at rated power (20 Hz - 20 kHz, 8 ohms)
0.001% at rated power (1 kHz, 8 ohms)
Intermodulation Distortion
0.004% at rated power (60 Hz:7 kHz = 4:1, 8 ohms)
Damping factor: 1,000 (50 Hz, 8 ohms)
Rise time: 1.6 µs
Frequency response: 0 - 300 kHz (+0, -3 dB)
Signal-to-noise ratio:
120 dB (according to IHF-66)
70 dB (according to IEC/LF)
Stereo channel separation: 70 dB (according to IEC/LF)
Special features:
Channel-separated level controls
Power indicator with peak hold (switchable and 1/3 second selectable)
Headphone jack
